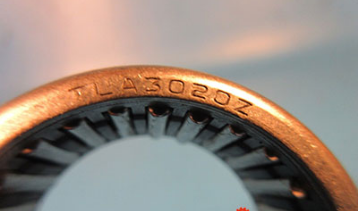

IKO Number: TLA 3020Z

Mass (Ref.): 38 g

Assembled inner ring: IRT 2520-1

Fw: 30 mm

D: 37 mm

C: 20 mm

Shaft dia. h6max.: 30 mm

Shaft dia. h6min.: 29.987 mm

Housing bore dia. N7max.: 36.992 mm

Housing bore dia. N7min.: 36.967 mm

Dynamic, C: 18.6 kN

Static, C0: 35.1 kN

Allowable rotational speed: 12000 rpm
